Accurate 3D Imaging of Speeding Sperm Cells

New technology allows clinicians to identify and select sperm, potentially increasing chances of pregnancy...


Tel Aviv University (TAU) researchers have developed a safe and accurate 3D imaging method to identify sperm cells moving at a high speed.

The research, published in Science Advances on April 10, was led by Prof. Natan Shaked of the Department of Biomedical Engineering at TAU's Faculty of Engineering together with TAU doctoral student Gili Dardikman-Yoffe.
The new technology could provide doctors with the ability to select the highest-quality sperm for injection into an egg during IVF treatment, potentially increasing a woman's chance of becoming pregnant to a healthy baby.

"The IVF procedure was invented to help fertility problems," explains Prof. Shaked. "The most common type of IVF today is intra-cytoplasmic sperm injection (ICSI), which involves sperm selection by a clinical embryologist and injection into the woman's egg. To that end, an effort is made to select the sperm cell that is most likely to create a healthy embryo."
Under natural fertilization in the woman's body, the fastest sperm to reach an egg is supposed to bear high-quality genetic material. Progressive movement allows this 'best' sperm to overcome the veritable obstacle course of a woman's reproductive system.

"But this 'natural selection' is not available to the embryologist, who selects a sperm and injects it into the egg," Prof. Shaked says. "Sperm cells not only move fast, they are also mostly transparent under regular light microscopy, and cell staining is not allowed in human IVF. Existing imaging technology that can examine the quality of the sperm's genetic material may cause embryonic damage, so that too is prohibited. In the absence of more precise criteria, sperm cells are selected primarily according to external characteristics and their motility while swimming in water in a dish, which is very different from the natural environment of a woman's body.

"In our study, we sought to develop an entirely new type of imaging technology that would provide as much information as possible about individual sperm cells, does not require cell staining to enhance contrast, and has the potential for enabling the selection of optimal sperm in fertilization treatments."

The researchers chose light computed tomography (CT) technology for the unique task of sperm cell imaging.

"In a standard medical CT scan, the device rotates around the subject and sends out X-rays that produce multiple projections, ultimately creating a 3D image of the body," says Prof. Shaked. "In the case of the sperm, instead of rotating the device around this tiny subject, we relied on a natural feature of the sperm itself: Its head is constantly rotating during the forward movement.

We used weak light (and not X-rays), which does not damage the cell. We recorded a hologram of the sperm cell during ultrafast movement and identified various internal components according to their refractive index. This creates an accurate, highly dynamic 3D map of its contents without using cell staining."


Using this technique, the researchers obtained a clear and accurate CT image of the sperm at very high resolution in four dimensions: three dimensions in the space at resolution of less than half a micron (one micron equals one millionth of a meter) and the exact time (motion) dimension of the second sub-millisecond.

"Our new development provides a comprehensive solution to many known problems of sperm imaging," Prof. Shaked says. "We were able to create high-resolution imaging of the sperm head while it was moving fast, without the need for stains that could harm the embryo. The new technology can greatly improve the selection of sperm cells in vitro, potentially increasing the chance of pregnancy and the birth of a healthy baby.
"To help diagnose male fertility problems, we intend to use our new technique to shed light on the relationship between the 3D movement, structure and contents of sperm and its ability to fertilize an egg and produce a viable pregnancy.

"We believe that such imaging capabilities will contribute to other medical applications, such as developing efficient biomimetic micro-robots to carry drugs within the body."


Natan T. Shaked PhD ECE, Associate Professor, Department of Biomedical Engineering, Tel Aviv University, Israel.

Abstract
We present a new acquisition method that enables high-resolution, fine-detail full reconstruction of the three-dimensional movement and structure of individual human sperm cells swimming freely. We achieve both retrieval of the three-dimensional refractive-index profile of the sperm head, revealing its fine internal organelles and time-varying orientation, and the detailed four-dimensional localization of the thin, highly-dynamic flagellum of the sperm cell. Live human sperm cells were acquired during free swim using a high-speed off-axis holographic system that does not require any moving elements or cell staining. The reconstruction is based solely on the natural movement of the sperm cell and a novel set of algorithms, enabling the detailed four-dimensional recovery. Using this refractive-index imaging approach, we believe that we have detected an area in the cell that is attributed to the centriole. This method has great potential for both biological assays and clinical use of intact sperm cells.

Authors
Gili Dardikman-Yoffe, Simcha K. Mirsky, Itay Barnea and Natan T. Shaked.


Acknowledgements
Copyright 2020 The Authors, some rights reserved; exclusive licensee American Association for the Advancement of Science. No claim to original U.S. Government Works. Distributed under a Creative Commons Attribution NonCommercial License 4.0 (CC BY-NC).

American Friends of Tel Aviv University supports Israel's most influential, comprehensive and sought-after center of higher learning, Tel Aviv University (TAU). TAU is recognized and celebrated internationally for creating an innovative, entrepreneurial culture on campus that generates inventions, startups and economic development in Israel. TAU is ranked ninth in the world, and first in Israel, for producing start-up founders of billion-dollar companies, an achievement that surpassed several Ivy League universities. To date, 2,500 US patents have been filed by Tel Aviv University researchers -- ranking TAU #1 in Israel, #10 outside of the US and #66 in the world.


Return to top of page.

May 8 2020   Fetal Timeline   Maternal Timeline   News

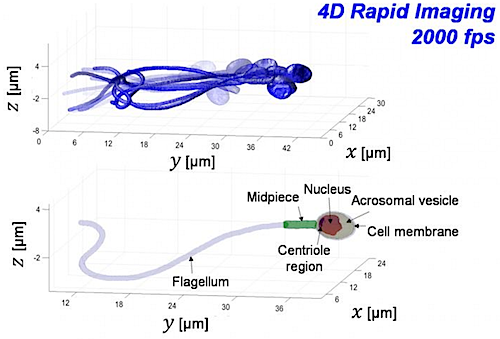

Extremely fast, dynamic 3D imaging of a sperm cell without staining, quantifies all
